First idea

I start to command the 3d printer in manual way to have a first idea on how I can print the piece. That first drawing being not unsuccessful I have to repeat the following 3d gcode or instructions.

Grow the picture

Above is what I have to repeat in order to have a first level of extrusion or fit. Then, I have to repeat that's part with 1) a comeback to 0.000 on the axe Z and 2) a level up on the Y axe and 3) find the right extrusion on E or the printer head of the 3d motor.

To conclude, I have to introduce the border frame on the rectangle to fit the support card into

After several unsuccessful attempts, I manage to get what's on the picture above. It remains to introduce the border frame. I am not going to explain this step.

Writing C program

The definitive C code generating the definitive gcode or 3d instructions for the 3d support card is below, it's a self-gen 3d printer instructions executable:

#include <stdio.h>

#define STEP_X 0.700

#define STEP_Y 0.200

#define STEP_Z 0.010

#define STEP_E 0.200

#define IMAX_E  1

#define EXTRUDE(E) do { \

printf("G1 E%.3f\n", E); \

E += STEP_E; \

} while(0)

static float X, Y, Z, E = 0.000;

void surface_edge_border(void) {

int layer = 0;

printf("; surface edge border\n");

for(Y; Y <= 10.801; Y += STEP_Y)

printf("G1 F200 Y%.3f\n", Y);

while (layer < 21) {

for (X; X < 37.101; X += STEP_X)

printf("G1 F200 X%.3f\n", X);

EXTRUDE(E);

EXTRUDE(E);

for (Z; Z > -0.501; Z -= STEP_Z)

printf("G1 F200 Z%.3f\n", Z);

EXTRUDE(E);

EXTRUDE(E);

for (Z; Z > -1.001; Z -= STEP_Z)

printf("G1 F200 Z%.3f\n", Z);

EXTRUDE(E);

EXTRUDE(E);

for (Z; Z > -2.001; Z -= STEP_Z)

printf("G1 F200 Z%.3f\n", Z);

EXTRUDE(E);

EXTRUDE(E);

for (Z; Z > -2.541; Z -= STEP_Z)

printf("G1 F200 Z%.3f\n", Z);

EXTRUDE(E);

EXTRUDE(E);

for (X; X > -0.001; X -= STEP_X)

printf("G1 F200 X%.3f\n", X);

EXTRUDE(E);

EXTRUDE(E);

EXTRUDE(E);

EXTRUDE(E);

if (layer < 2) {

EXTRUDE(E);

EXTRUDE(E);

EXTRUDE(E);

}

for (Z; Z < -2.539; Z += STEP_Z)

printf("G1 F20 Z%.3f\n", Z);

EXTRUDE(E);

EXTRUDE(E);

if (layer < 2) {

EXTRUDE(E);

EXTRUDE(E);

}

for (Z; Z < -1.001; Z += STEP_Z)

printf("G1 F20 Z%.3f\n", Z);

EXTRUDE(E);

EXTRUDE(E);

if (layer < 2) {

EXTRUDE(E);

EXTRUDE(E);

}

for (Z; Z < -0.499; Z += STEP_Z)

printf("G1 F20 Z%.3f\n", Z);

EXTRUDE(E);

EXTRUDE(E);

if (layer < 2) {

EXTRUDE(E);

EXTRUDE(E);

}

for (Z; Z < 0.001; Z += STEP_Z) {

if (Z > -0.030) {

Y += STEP_Y;

printf("G1 F200 Y%.3f\n", Y);

}

printf("G1 F20 Z%.3f\n", Z);

}

Y += STEP_Y;

printf("G1 F200 Y%.3f\n", Y);

layer++;

}

return;

}

void base_filled_rectangle(void) {

int layer = 0;

int max_E = IMAX_E, cnt_E;

for(cnt_E = 0; cnt_E < max_E; cnt_E++)

EXTRUDE(E);

while (layer < 7) {

if (layer == 2)

max_E += 4;

if (layer == 6)

max_E -= 2;

while(Z > -2.541) {

for (X; X < 37.101; X += STEP_X)

printf("G1 F200 X%.3f\n", X);

for(cnt_E = 0; cnt_E < max_E; cnt_E++)

EXTRUDE(E);

Z -= STEP_Z;

printf("G1 F200 Z%.3f\n", Z);

Z -= STEP_Z;

printf("G1 F200 Z%.3f\n", Z);

for(cnt_E = 0; cnt_E < max_E; cnt_E++)

EXTRUDE(E);

for (X; X > -0.001; X -= STEP_X)

printf("G1 F200 X%.3f\n", X);

for(cnt_E = 0; cnt_E < max_E; cnt_E++)

EXTRUDE(E);

Z -= STEP_Z;

printf("G1 F200 Z%.3f\n", Z);

Z -= STEP_Z;

printf("G1 F200 Z%.3f\n", Z);

}

for (Z; Z < -2.539; Z += STEP_Z)

printf("G1 F200 Z%.3f\n", Z);

for(cnt_E = 0; cnt_E < max_E; cnt_E++)

EXTRUDE(E);

for (Z; Z < -1.001; Z += STEP_Z)

printf("G1 F200 Z%.3f\n", Z);

for(cnt_E = 0; cnt_E < max_E; cnt_E++)

EXTRUDE(E);

for (Z; Z < -0.499; Z += STEP_Z)

printf("G1 F200 Z%.3f\n", Z);

for(cnt_E = 0; cnt_E < max_E; cnt_E++)

EXTRUDE(E);

for (Z; Z < 0.001; Z += STEP_Z)

printf("G1 F200 Z%.3f\n", Z);

for(cnt_E = 0; cnt_E < max_E; cnt_E++)

EXTRUDE(E);

Y += STEP_Y;

printf("G1 F200 Y%.3f\n", Y);

Y += STEP_Y;

printf("G1 F200 Y%.3f\n", Y);

Y += STEP_Y;

printf("G1 F200 Y%.3f\n", Y);

Y += STEP_Y;

printf("G1 F200 Y%.3f\n", Y);

Y += STEP_Y;

printf("G1 F200 Y%.3f\n", Y);

Y += STEP_Y;

printf("G1 F200 Y%.3f\n", Y);

layer++;

}

}

void marlin_init(void) {

printf("G90\n");

printf("M106 S225\n");

printf("M109 S225\n");

return;

}

void marlin_finish(void) {

printf("M106 S0\n");

printf("M109 S0\n");

for (Z; Z < 0.777; Z += STEP_Z)

printf("G1 F200 Z%.3f\n", Z);

return;

}

int main(int argc, char **argv) {

marlin_init();

base_filled_rectangle();

surface_edge_border();

marlin_finish();

return 1;

}

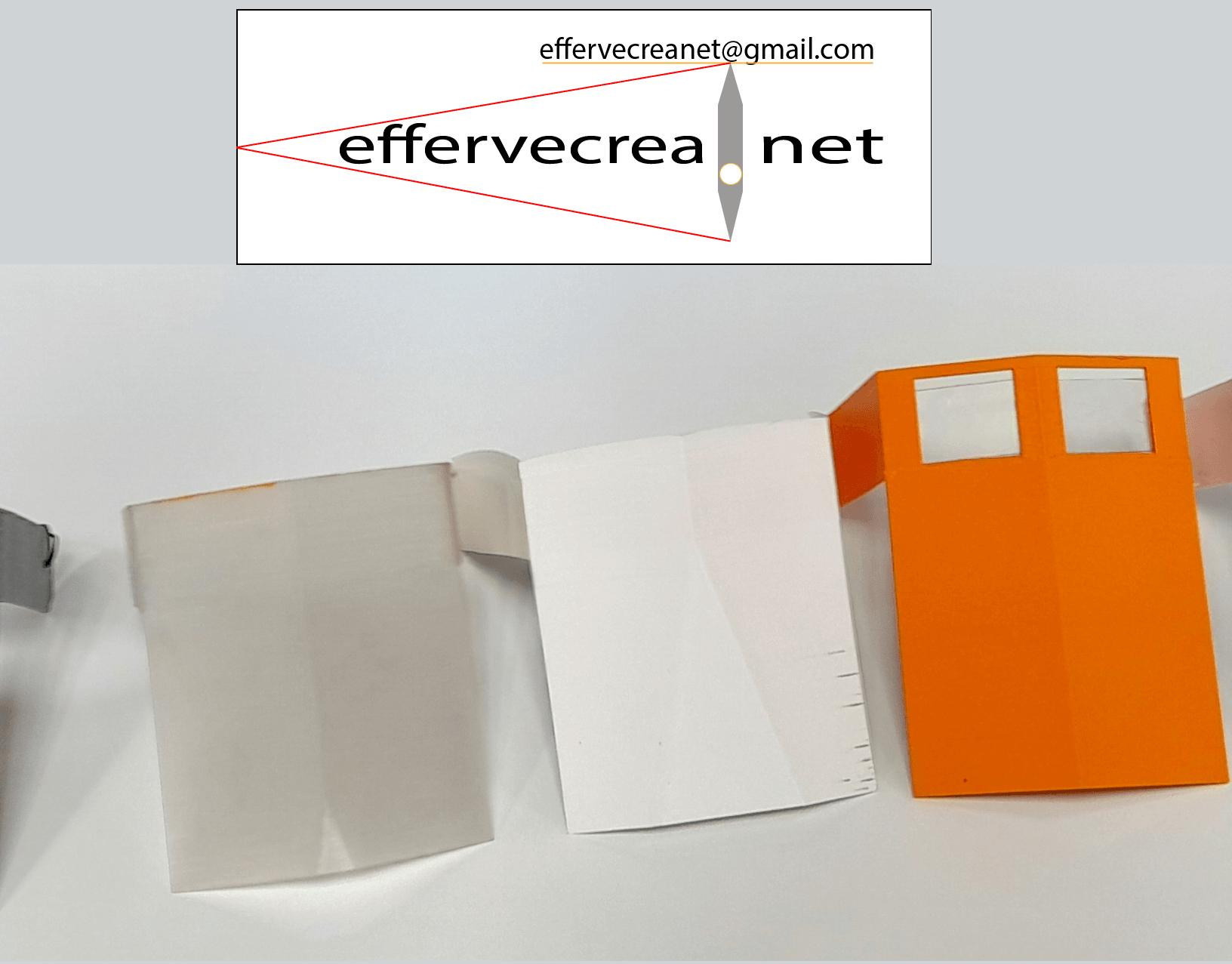

Printed piece

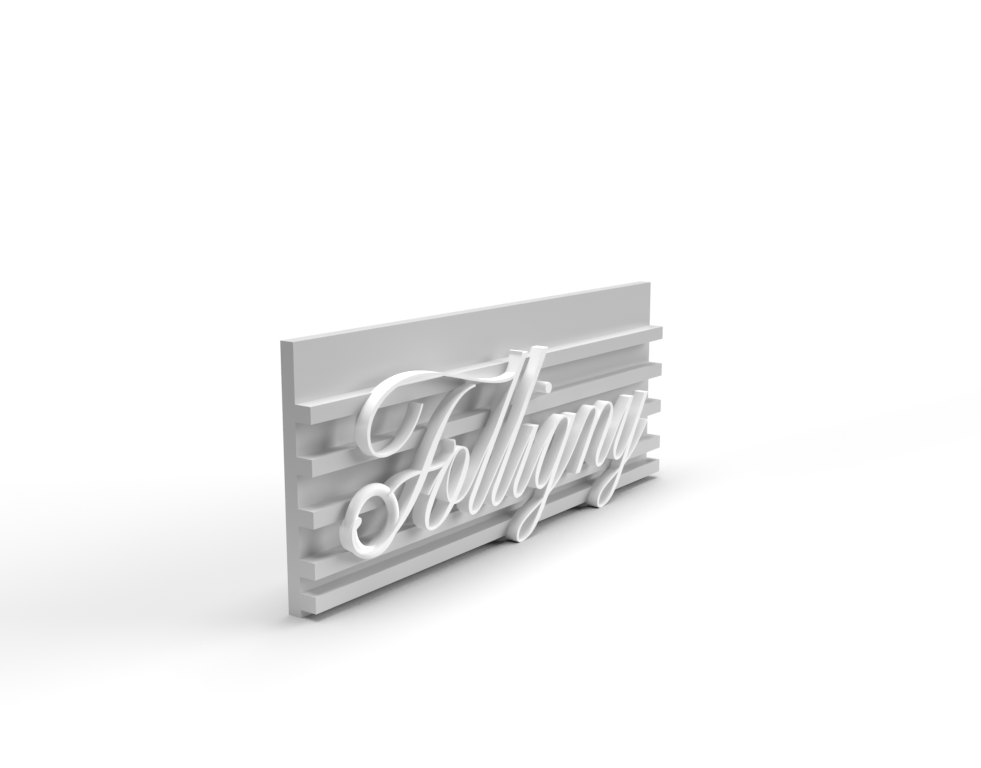

The definitive work production is below in three pictures
